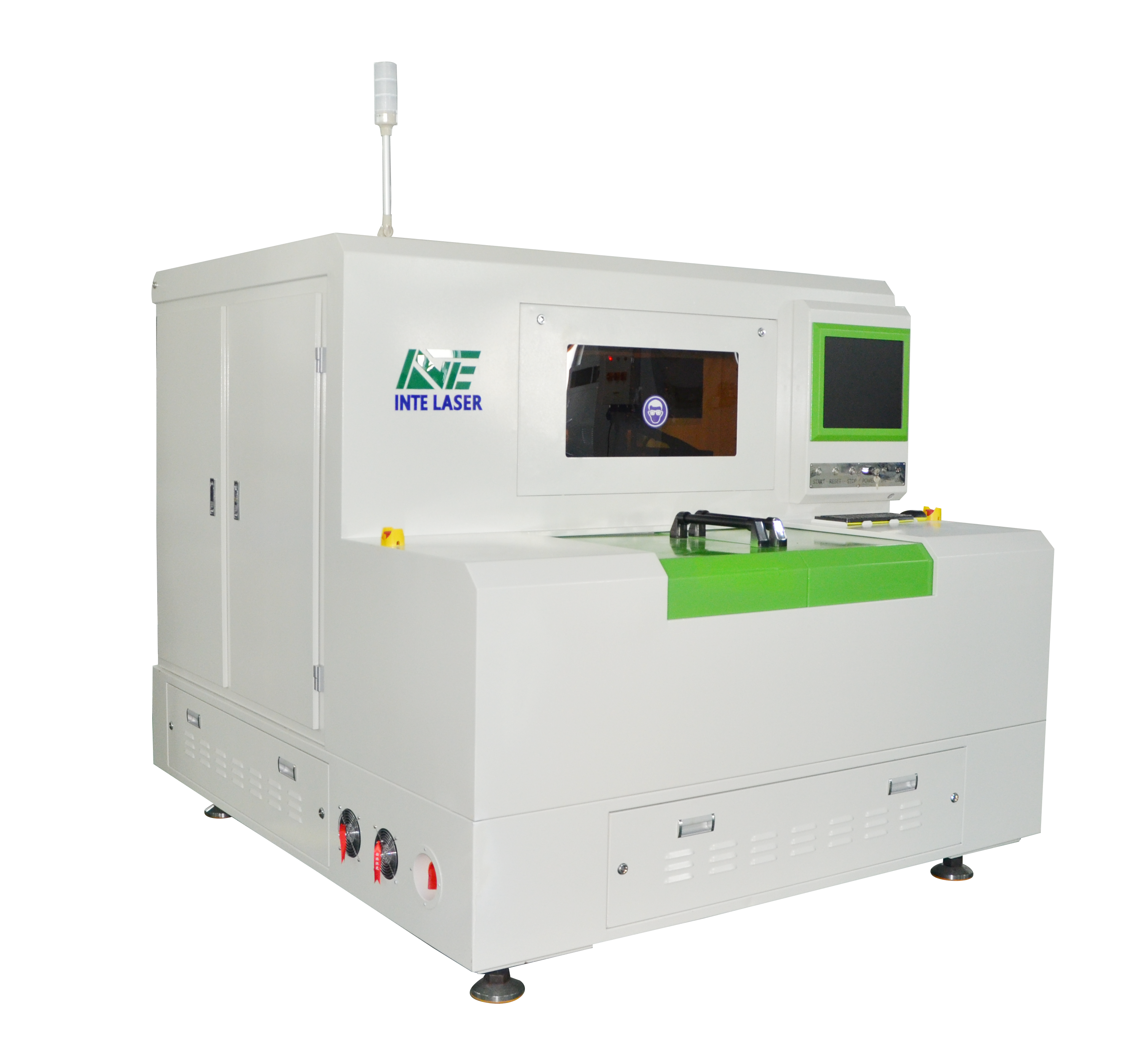

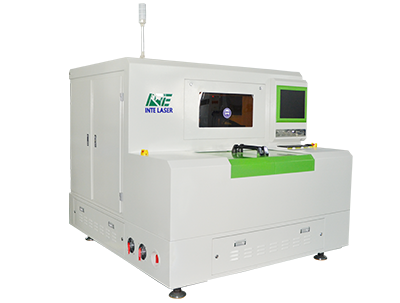

Product name: Automatic Sapphire Laser Drilling Equipment

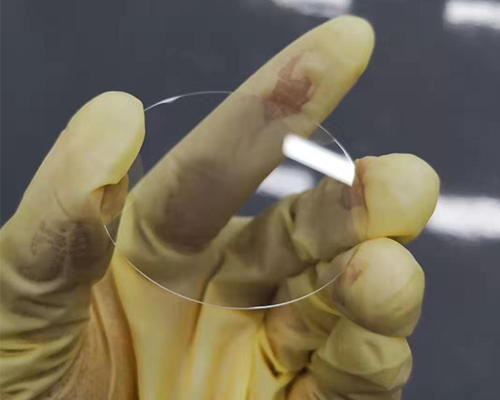

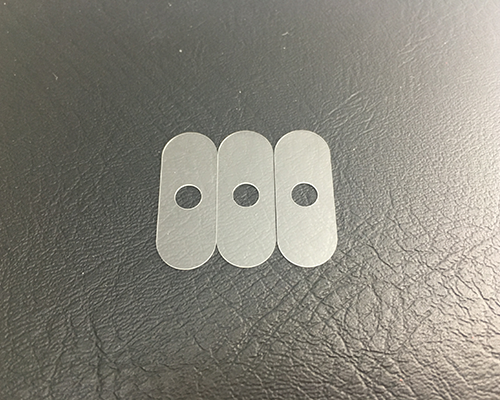

Application areas:This type of equipment could be applied to drilling for cellphone cover glass, screen cover galss, VR cover glass, vehicular glass, special glass so on.
Processing advantages:
This equipment has the characteristics of fast drilling speed high precision. It is equipped with a special adsorption fixture platform dust extraction device, it comes with a galvanometer correction system..
| technical parameter | |
| Laser wavelength | 1064nm |
| power | 30w-50w |
| Beam quality | <1.3 |
| Laser safety level | Class IV |
| Scan range | 100mm*100mm can be customized |
| Galvanometer scanning speed | ＜9000mm/s |
| Precision | ±0.02mm |
| Platform repeat positioning accuracy | ±0.0025mm |
| cooling method | Water cooling |
| Ambient temperature/humidity | 22±2℃/30-60% without condensation |
| Machine power consumption | ＜4.0kw |
| Stand-alone size | 1.8m*1.7m*1.9m |
